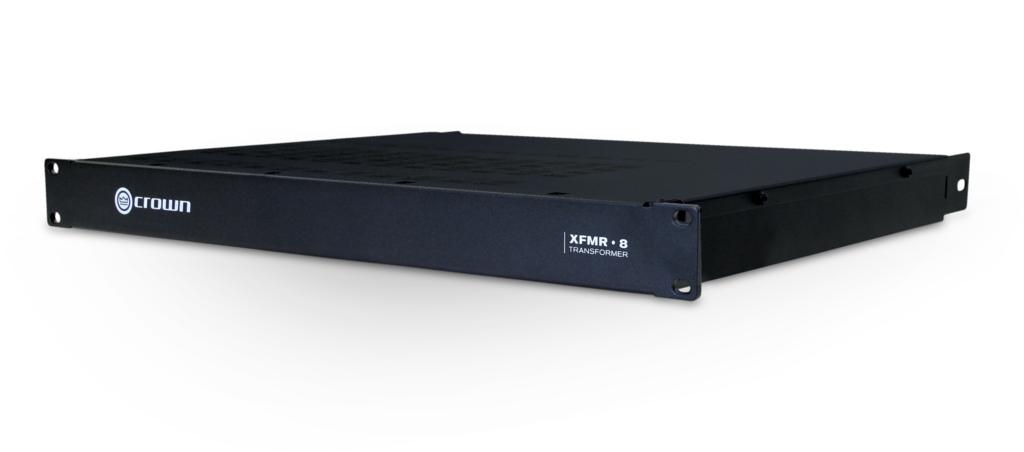

XFMR-8

XFMR-8

Eight-channel Transformer rack-mountable transformers to provide impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70Vrms or 100Vrms output capability to drive distributed speaker systems designed to operate at those voltages.

Days
Hours
Mins
Secs
1

0.000 JOD 0.000 JOD 0.0 JOD

0.000 JOD

    This combination does not exist.

    Add to Cart Buy Now
    CROWN

    Free Shipping in Amman
    Buy now, get in 2 days

    Eight-channel Transformer rack-mountable transformers to provide impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70Vrms or 100Vrms output capability to drive distributed speaker systems designed to operate at those voltages.

    • XFMR_Data_Sheet_Final

    • Transformers provide four and eight channels of impedance matching for constant voltage operation
    • Provides 70Vrms and 100Vrms output when used only with the ComTech DriveCore™ Series of amplifiers
    • Allows amplifiers without direct constant voltage capability to be easily integrated into distributed systems
    • “Jumper” cables are provided to easily incorporate the XFMR unit with a ComTech DriveCore am

    Output ConnectorsPluggable barrier block connectors that accept up to 14 AWG wire
    Frequency Response+/-1.0dB (at 70Hz to 15 kHz)
    Insertion Loss≤1.0 dB max (at 70VAC)
    Max Input32Vrms/125W
    Dimensions19" x 1.72" x 15.6" (48.3cm x 4.4cm x 39.7cm)
    Weight23.6lbs (10.7kg)

    Eight-channel Transformer rack-mountable transformers to provide impedance matching between amplifier outputs and “constant voltage” loudspeakers. This unit allows amplifiers without direct 70Vrms or 100Vrms output capability to drive distributed speaker systems designed to operate at those voltages.
