VRX932LAP

12 in. Two-Way Powered Line Array Loudspeaker System

Days
Hours
Mins
Secs
1

0.000 JOD 0.000 JOD 0.0 JOD

0.000 JOD

    This combination does not exist.

    Add to Cart Buy Now
    JBL

    Free Shipping in Amman
    Buy now, get in 2 days

    12 in. Two-Way Powered Line Array Loudspeaker System

    • VRX_OneSheet_090707_email_5B1_5D
    • VRX_20Brochure_082009_web
    • JBL_VRX932LAP.v1
    • DOC_574

    12 in. Two-Way Powered Line Array Loudspeaker System

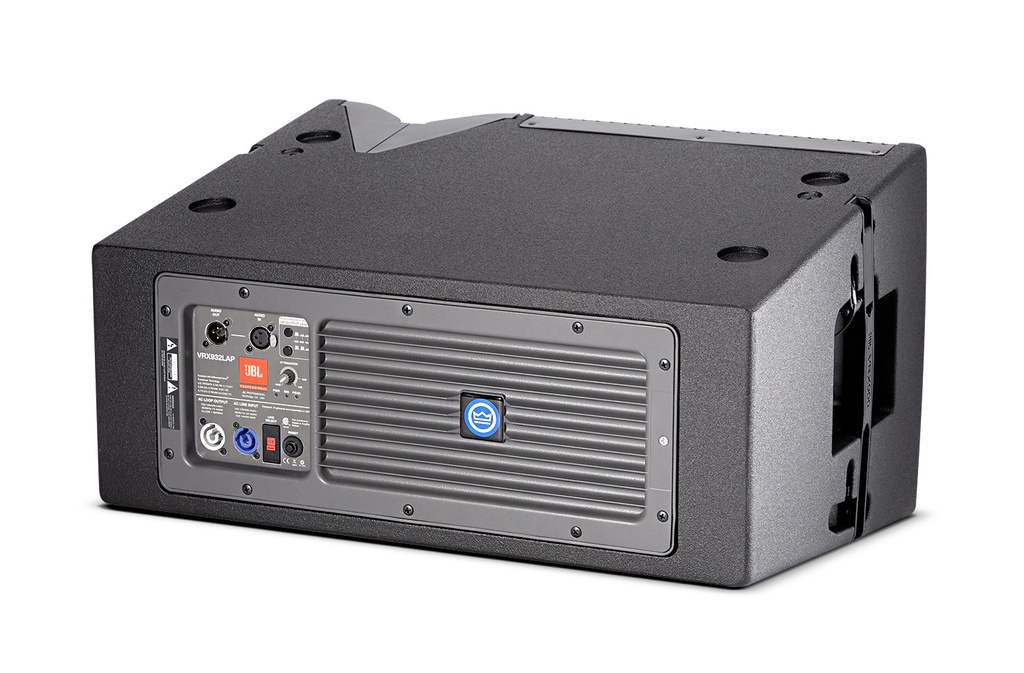

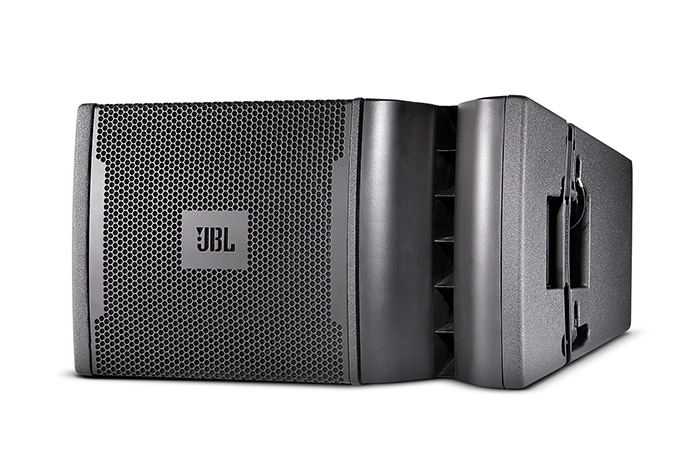

    The VRX932LAP is a powered, lightweight, compact 12" two-way line-array speaker system designed for use in arrays of up to five units. VRX932LAP is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays and a fast and easy setup is vital.

    • Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
    • JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
    • VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
    • Constant Curvature waveguide for unprecedented array coherence.
    • Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
    • Array Configuration Selector permits "array shading".
    Power Rating1750 Watts Peak875 Watts Continuous
    Frequency Response (-10dB)57 Hz - 20 kHz
    Dimensions (H x W x D)349 mm x 597 mm x 444 mm(13.75 in x 23.5 in x 17.5 in)
    Frequency Response75 Hz - 20 kHz (+/-3db)
    Maximum SPL (1m)136 dB SPL
    Coverage Pattern100 x 15 nominal
    DPC-2 Output as (Continuous IED shaped pink noise into rated load impedance)LF: 750 Watts, HF: 125 Watts
    DPC-2 Output SectionLF: Dual-Bridged Technology™, Class D
    InputsXLR with loop through
    LF Driver1 x JBL 2262FF 305 mm (12 in) neodymium magnet
    HF Driver3 x JBL 2408J, 38 mm (1.5 in)
    User ControlsInput Attenuator (0-16 dB)
    Signal ProcessingsDSP based, resident in Input Module
    AC Power Operating Range90-132 VAC or 216-264 VAC, 50/60 Hz
    AC Input ConnectorNeutrik PowerCon (NAC 3MPA)
    AC Loop Through ConnectorNeutrik PowerCon (NAC 3MPB)
    AC Current Requirements6A per system at 120V, 3A per system at 240V
    Enclosure25/15 mm, 11-ply birch plywood
    Suspension / MountingOptional VRX-AF line array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting
    FinishBlack DuraFlex™ finish
    GrillePowder coated, black, 16-gauge perforated steel with with acoustically transparent foam
    Net Weight (each)24 kg (52 lb)
    Optional AccessoriesVRX-AF: Suspension array frame
    Outputs1 x XLR
    System TypeConstant Curvature 12" Two-Way Powered Line Array System
    Nominal ImpedanceNA - amplification is integrated
