12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

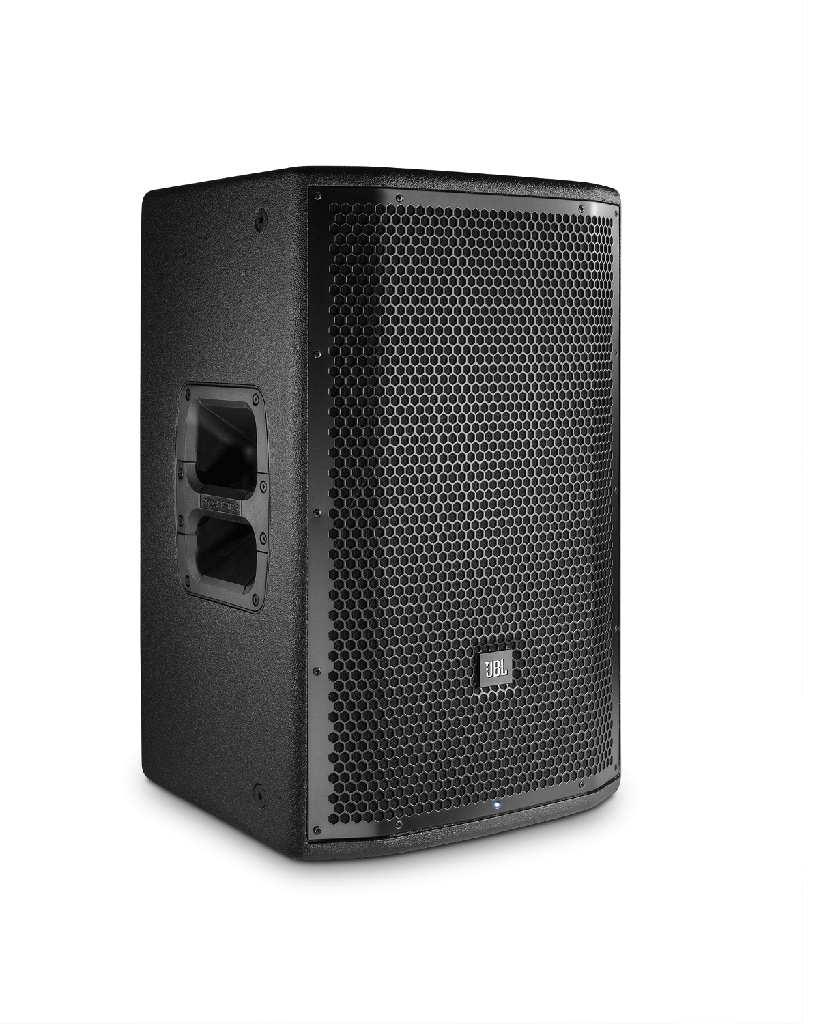

The JBL PRX812 is a full-range speaker designed for main system and floor monitor applications. Featuring a 12”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX812 delivers incredible volume in a lightweight and compact form factor.
Built-in Wi-Fi for wireless control of your system from anywhere in the venue

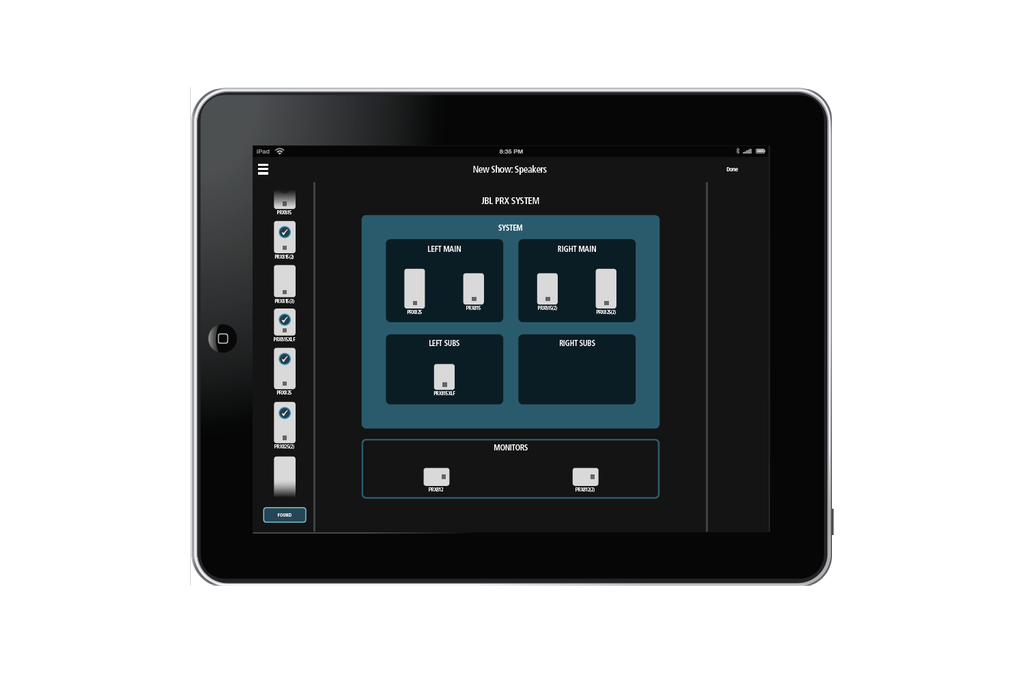

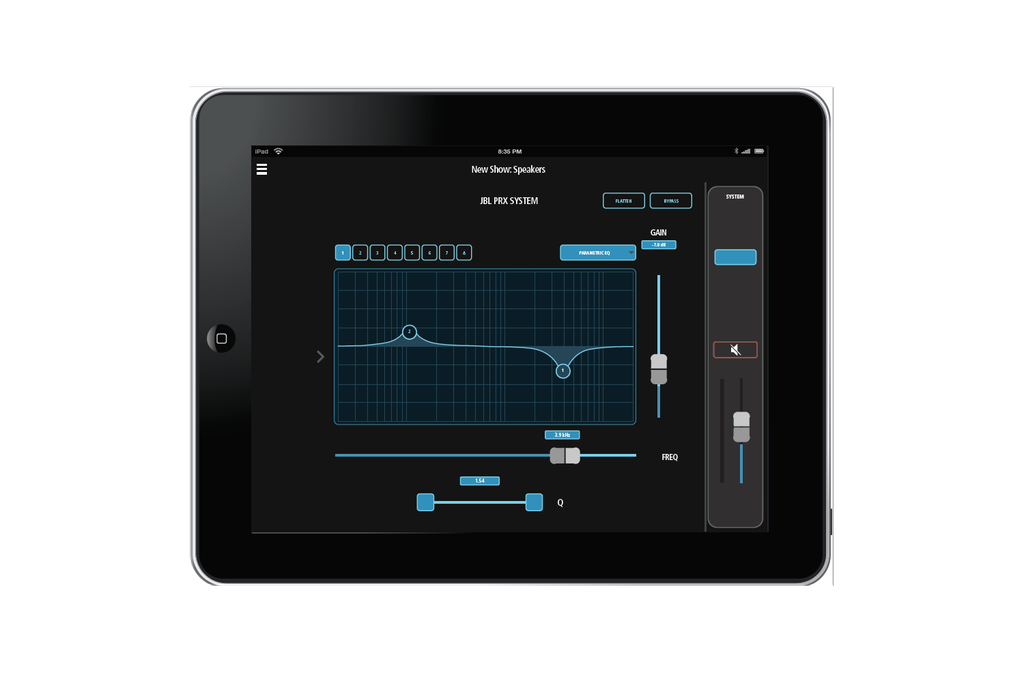

Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
Class-leading 1500-watt amplifier delivers ample power to fill your venue
JBL Differential Drive® transducers for higher SPL in a lightweight design
Next-generation JBL neodymium compression drivers
Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
Intelligent variable-speed fan activates only when needed to reduce noise
Updated tuning delivers flat frequency response and smooth off-axis behavior
Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
Universal power supply for worldwide compatibility
dbx Type IV™ limiting ensures clear, accurate sound at high volumes
Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance
PRX812 is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812 is a perfect match with a PRX818XLF subwoofer, offering a high performance self-powered sub/sat system.

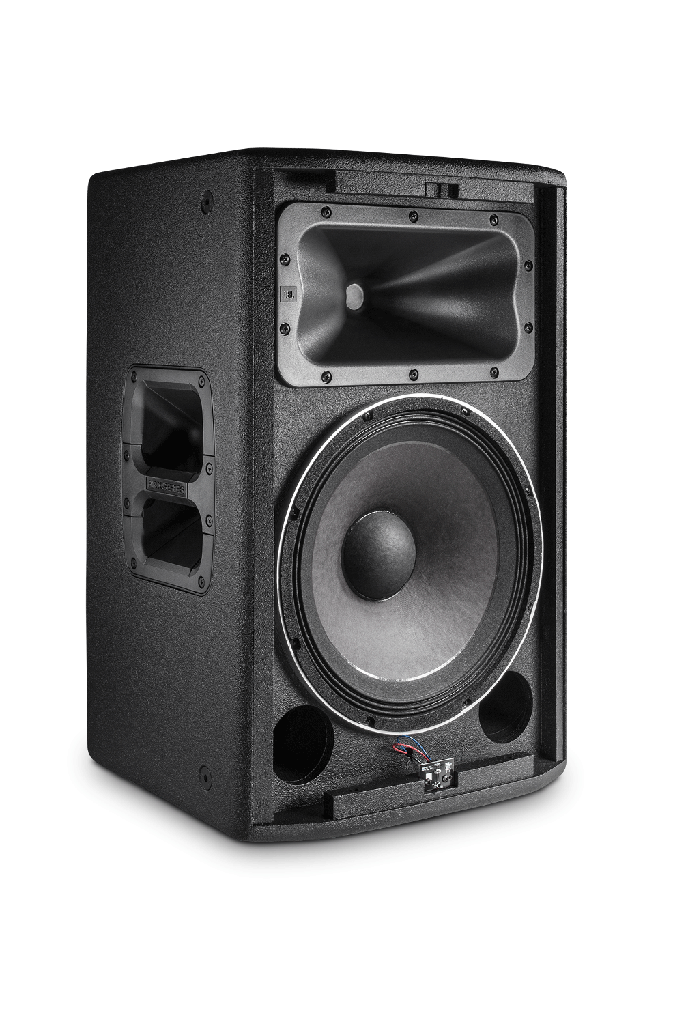

The PRX812 is comprised of a 12” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.
Self Powered 12”, two-way, bass-reflex
Maximum SPL Output
135 dB peak
Frequency Response (-10dB)
Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz
Frequency Response (±3 dB)
Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz
2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
20K Ohms (balanced), 10K Ohms (unbalanced)
Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input)
dbx Type IV™ limiter circuit
Highly efficient Class-D amplifier
1500W (750W x 2)
AC power input
100V - 240V ~ 50/60 Hz
1 x JBL 272G 305 mm (12 in) woofer
1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
90° x 50° nominal
Directivity Index (DI)
Directivity Factor (Q)
Asymmetrical, 18 mm, Duraflex coated plywood
Suspension / Mounting
Dual 36 mm pole socket, 12 x M10 Suspension Points
1 x injection molded handle with backing cup
Obsidian DuraFlex™ finish
Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D)
599mm x 385mm x 341mm (23.6in x 15.1in x 13.4in)
40 lbs / 18.1 kg
21.2 kg (48.0 lb)
25 parametric EQ's and speaker delay
1 x XLR (mix out)
