JBL VMA 2120

900.000 JOD 900.000 JOD 900.0 JOD

900.000 JOD

Add to Cart Buy Now
JBL VMA 2120
VMA2120
  1. JBL VMA 2120
  2. VMA2120

JBL VMA 2120

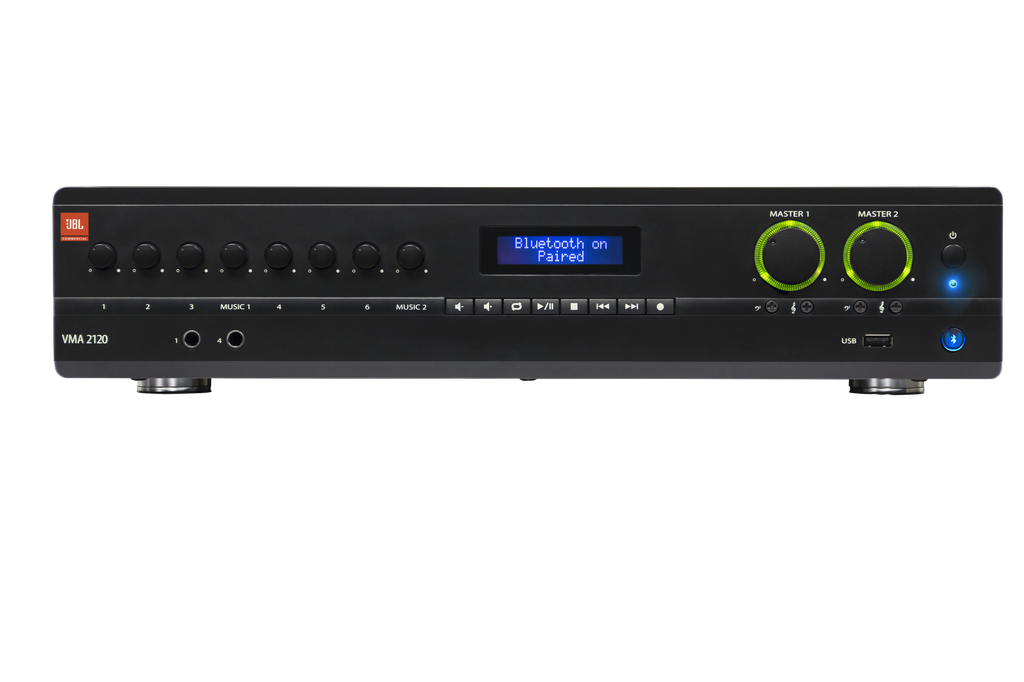

JBL VMA2120 Commercial Series 120W Bluetooth-Enabled Mixer/Amplifier (8-In/2-Out)

Days
Hours
Mins
Secs
1

    This combination does not exist.

    Add to Cart Buy Now
    JBL

    Free Shipping in Amman
    Buy now, get in 2 days

    8 inputs with 2 outputs of 120-watts of power

    • VMA_Series_Manual_5078447-B

    The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

    • 8 inputs with 2 outputs of 60 or 120-watts of power
    • Independent bass and treble controls for each output channel
    • 100V and 70V output, or 4Ω/8Ω
    • Paging Chime, and Priority muting
    • Works with JBL CSR-V wall controllers
    • Balanced mic/line inputs; RCA (.775V) inputs
    • Rack mounting hardware included

    Max Output Power per Channelinto 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD - VMA260: 60W VMA2120: 120W
    Insertion Loss(70V & 100V outputs) 1dB maximum
    Number of Inputs8
    Number of Outputs2
    Tone Controls(Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
    Input Sensitivity(to obtain full rated power into 8 Ω load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
    Frequency Response(measured at 2.83VRMS into rated load impedance at any output) 4/8 Ω Output: 20Hz - 20kHz, +/-2dB; 70V/100V Outputs: 80Hz - 15kHz +/-3dB
    Total Harmonic Distortion (THD)(measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz - 20kHz
    Signal to Noise Ratio(Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
    Input Impedance(nominal) Mic: 400 Ω Line: 20 kΩ (balanced) RCA: 50 kΩ
    Phantom Power27VDC
    Crosstalk(reference rated power, volume at mid position, 1kHz) -70 dB
    Nominal AC Line Voltages100V, 120V, 220V, 220-240V, 50/60 Hz
    Minimum Load Impedance(Low Impedance Output, 70V Output, 100V Output) VMA260: 4 Ω, 80 Ω,160 Ω VMA2120: 4 Ω, 40 Ω, 80 Ω
    Operating Temperature/Humidity0°C to 35°C @ 95% R.H. (non-condensing)
    Storage Temperature-20°C to 85°C
    Net WeightVMA260: 25.5 lb (11.6 kg) VMA2120: 29.3 lb (13.3 kg)
    DimensionsWidth: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
    Shipping WeightVMA260: 30.8 lb (14 kg) VMA2120: 34.5 lb (15.7 kg)

    8 inputs with 2 outputs of 120-watts of power
