| Frequency Response (-10dB) | 47 Hz – 16 kHz |
| Power Rating | 240 W Continuous Program (2 hrs) 120W (480W peak), Continuous Pink Noise (2 hrs) 100W (400W peak) Continuous Pink Noise (100 hrs) |
| Transformer Taps | 70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W |
| Frequency Response (±3 dB) | 60Hz - 15 kHz |
| Maximum Input Voltage | 28.0 V |
| Sensitivity | 87 dB, 1W @ 1m (ave. 80Hz - 16kHz) |
| Coverage Angle | 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground). |
| Directivity Factor (Q) | 2.1 |
| Directivity Index (DI) | 3.2 dB |
| Maximum SPL (1m) | 108 dB |
| Impedance | 8Ω (at 8Ω setting) |
| Minimum Impedance | 6.6Ω at 9.5kHz |
| Insertion Loss | <0.5 dB at any tap setting |
| Thru Setting | 8Ω nominal |
| Crossover Type | 2nd Order LPF on LF and 2nd Order HPF on HF |
| Recommended Protective High-Pass | 45 Hz for 8Ω operation, 24 dB/oct 80 Hz for 60W tap, 24 dB/oct 50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct |
| Drivers | LF: 200 mm (8.00 in) diameter LF driver, Kapton™ former, 38mm (1.5 in) voice coil, polypropylene cone and polyurethane surround.
HF: 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome. |
| Enclosure | LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated. |
| Grille | Powder coated stainless steel. |
| Outdoor Capability | IP-55 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated. |
| Safety Agency | UL1480, Transformer UL Recognized per UL1876, ROHS compliant. |
| Input Connectors | Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section) |

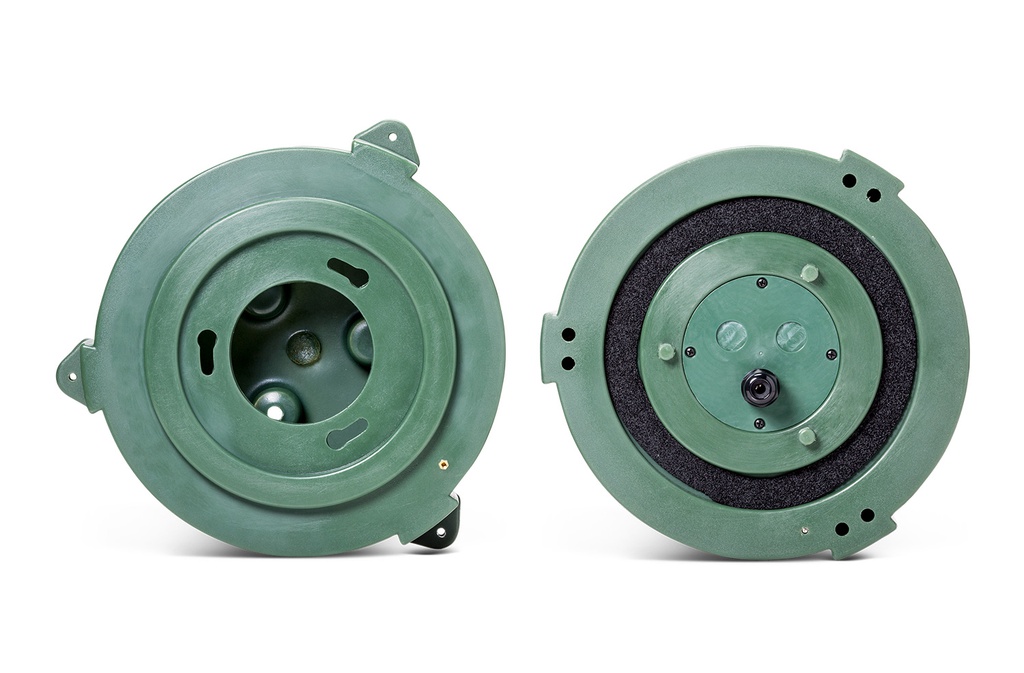

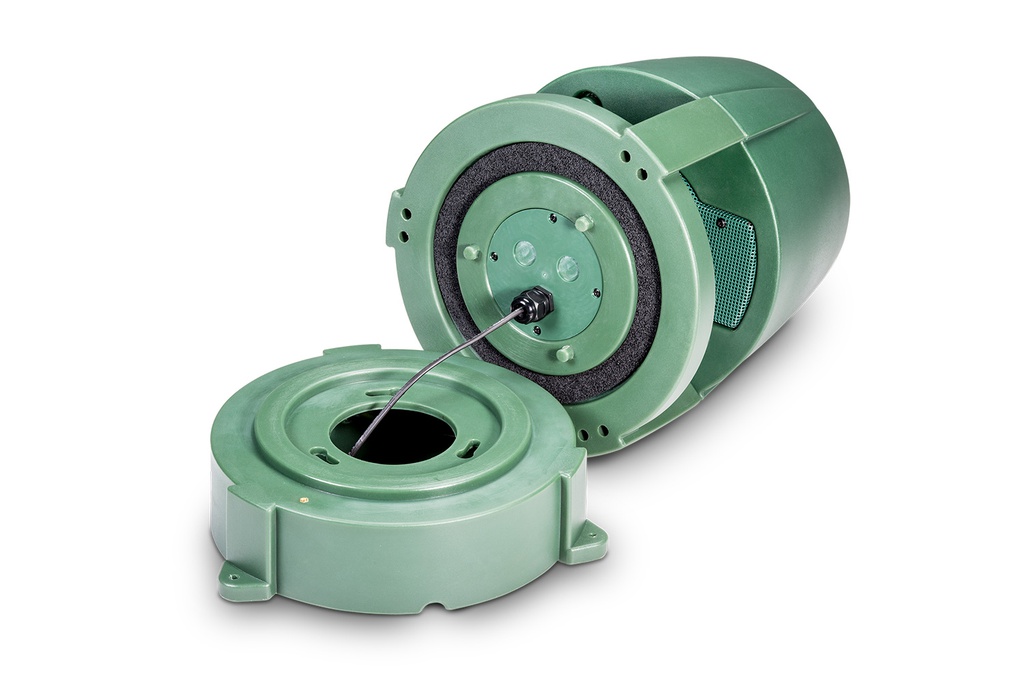

| Wiring | Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For Installation instructions, see Installation Guide (#IS-C80MLS). |
| Colors | Hunter Green, RAL6018 |
| Dimensions (H x W x D) | 524 x 355 x 355 mm (20.7 x 14 x 14 in.) |
| Net Weight (each) | 7.8 kg (17 lb) |
| Shipping Weight | 10.5 kg (23 lb) |
| Included Accessories | (2) wire nuts, (2) gland nuts, (1) right-angle screwdriver |
| Installer-Supplied Required Tools | 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure. |
| Optional Accessories | 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure. |
