135MA

Add to Cart Buy Now

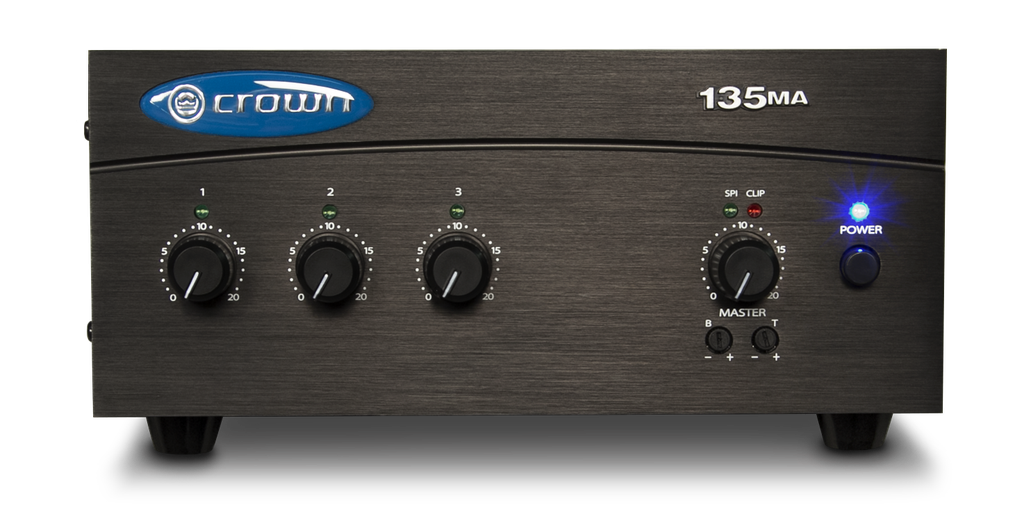

Three Input, 35W Mixer-Amplifier

This combination does not exist.

Add to Cart Buy Now

Free Shipping in Amman
Buy now, get in 2 days

Three Input, 35W Mixer-Amplifier

3 inputs (each with a volume control), and one 35W amplifier output channel in 135MA
4 inputs (each with a volume control), and one 60W amplifier output channel in 160MA
Ideal for paging, background music, and music-on-hold

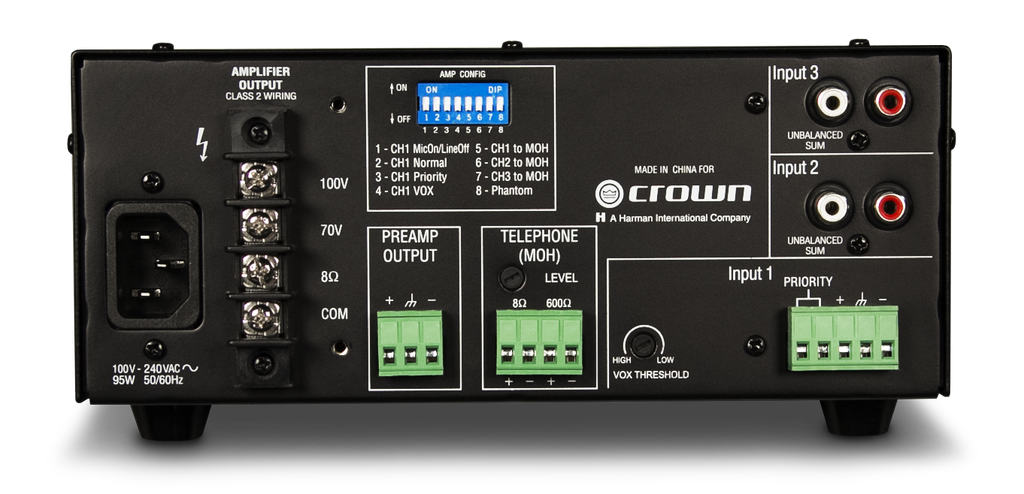

Balanced Phoenix-type mic/line input, telephone output, dual RCA stereo music inputs, screw-terminal speaker outputs
Priority muting by VOX or external switch
Bass and Treble controls on master output
Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications

Frequency Response	(at 1 watt from line out): 50 Hz to 20 kHz +/-1 dB, 19 Hz to 34 kHz - 3 dB
Signal to Noise Ratio	(ref. to rated power, master volume at minimum): Mic: > 58 dB, Line: > 60 dB, Telephone: > 60dB, Inputs 2 or 3: > 78 dB
THD+Noise	< 0.5% at rated power at 1 kHz, < 0.1% at 5W at 1 kHz
Input Sensitivity	(for full output at miximum gain): Input 1: Mic 3mV, Line 800 mV, Input 2: 400mV, Input 3: 400mV
Input Impedance (nominal)	Mic: 2.2 kilohms, Line: 10 kilohms, RCA: 10 kilohms
Crosstalk	-82 dB at 1 kHz (Ch. 1 line inpute 0.8V, Ch. 1 volume at minimum, other channel volumes at maximum)
Line Output Level (nominal)	1V into 10 kilohms
Phantom Power	15 VDC
AC Line Voltages Available	Universal Power Supply. Line voltage tolerance +15%, -20%
Operating Temperature/Humidity	0 degrees C to 40 degrees C at 95% relative humidity (non-condensing)
Storage Temperature	-20 degrees C to 85 degrees C
IEC Power Connector	15A
